IP65 LED Tri-Proof Light | Waterproof
LED Fixtures, LED Tri-proof Light|IP65 LED Tri-Proof Light | Waterproof PC Housing Industrial Linear Light 18W–50W|led tri proof light,water proof lamps,china lighting manufacturers,led lamp manufacturers,water proof led lights,led light manufacturers in china,led light supplier china,led lamp suppliers,led water proof lights,led lamp manufacturers in china,china tri proof light,china led tri proof light,led tri proof light manufacturer,industrial lighting manufacturers,industrial led lighting m
Highlights
- Strict quality control during production
- Stable LED driver performance
- Long lifespan and low maintenance cost
- Multiple product options for different markets
- Professional OEM and ODM service
Specifications
| Wattage | 18W, 30W, 36W, 50W |
|---|---|
| Voltage | AC 220-240V |
| CCT | 2700K-6500K |
| CRI | > 80 |
| Beam angle | 120° |
| IP rating | IP65 |
| Warranty | 3 Years |
Product Details

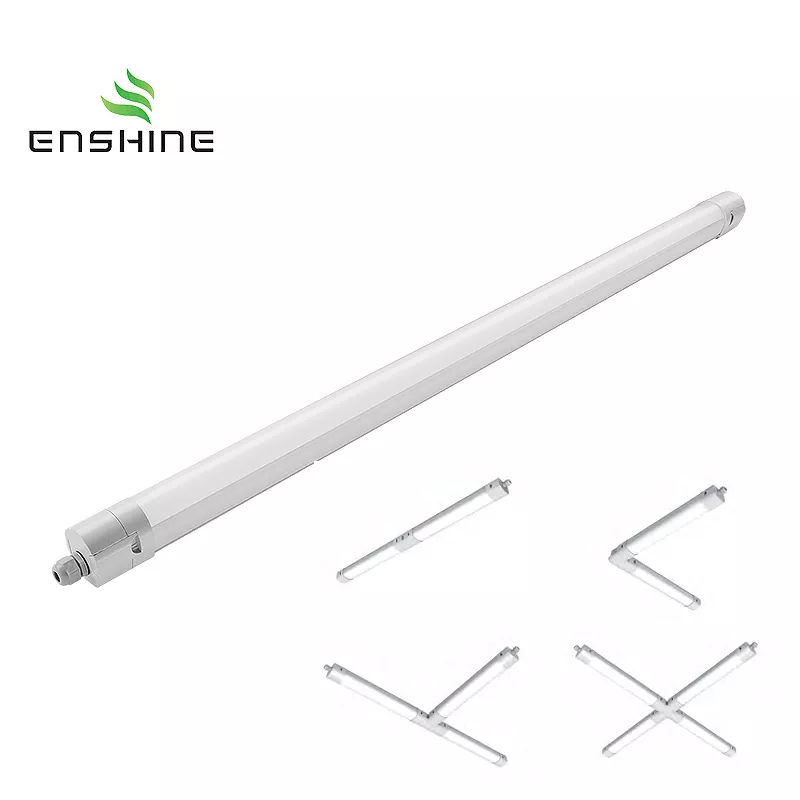

LED Tri-Proof Light – IP65 Waterproof Industrial Lighting Solution
The LED tri-proof light is designed for reliable performance in demanding environments. With a durable full PC housing and IP65 protection rating, it provides excellent resistance against water, dust, and corrosion.
This linear waterproof light is widely used in industrial and commercial applications such as warehouses, parking garages, workshops, corridors, and supermarkets. The high-efficiency LED chips ensure stable brightness while maintaining low power consumption.
Multiple sizes and wattage options are available to meet different lighting project requirements, including 650mm, 1200mm, and 1500mm versions. The integrated design ensures easy installation and long service life, making it a cost-effective lighting solution for large-scale projects.
Typical Application Scenarios
Warehouses and logistics centers: The 1200mm 36W and 1500mm 50W models deliver 4057 LM and 5844 LM respectively, providing uniform high-bay illumination for storage aisles and loading docks where dust and humidity are common.
Underground parking garages: IP65 sealed housing withstands vehicle exhaust, moisture condensation, and intermittent water spray. The 650mm 18W version (1850 LM) is suited for low-ceiling parking bays and ramp entrances.
Food processing and pharmaceutical workshops: The full PC housing resists corrosion and does not shatter like glass, reducing contamination risk in environments requiring frequent washdown.
Corridors and stairwells: Surface-mounted or suspended installation options let contractors fit the fixture into narrow ceiling spaces with minimal retrofit labor.
Specifications
Model | YX-LNF3 | ||||
Wattage | 18W | 18W | 36W | 30W | 50W |
LED Chip Types | SMD 2835 | ||||
Voltage | AC 220-240V | ||||
Frequency | 50/60 Hz | ||||
CCT | 2700-6500K | ||||
CRI | > 80 80 | ||||
Body Material | PC | ||||
Beam Angle | 120° | ||||
IP Rate | IP65 | ||||
Electrical Rating | Class I | ||||
Lumen(±10%) | 1850 LM | 1850 LM | 4057 LM | 3300 LM | 5844 LM |
Power Factor | > 0.90.9 | > 0.90.9 | > 0.95.95 | > 0.95.95 | > 0.95.95 |
Product Size | 650*59*60 mm | 1200*59*60 mm | 1200*59*60 mm | 1500*59*60 mm | 1500*59*60 mm |
Average Life | 30000 hrs | ||||
Brand Name | ENSHINE | ||||
Warranty | 3 Years | ||||
Advantage
IP65 Waterproof Protection
The sealed structure protects the fixture from water, dust, and humidity, making it suitable for harsh environments.Durable Full PC Housing
High-quality polycarbonate material provides excellent impact resistance and long-term durability.Energy Efficient Lighting
High lumen efficiency reduces energy consumption while delivering bright and uniform illumination.Multiple Sizes and Wattages
Available in 650mm, 1200mm, and 1500mm with power options from 18W to 50W.Easy Installation
Designed for quick surface mounting or suspension installation, saving labor cost in large projects.
Wattage Selection Guide by Project Type
Recommended Application | Wattage | Lumen Output | Suggested Mounting Height |
Corridors, stairwells, residential basements | 18W / 650mm | 1850 LM | 2.0–3.0 m |
Parking garages, retail backrooms, workshops | 30W / 1500mm | 3300 LM | 3.0–4.5 m |
Standard warehouse aisles, supermarkets | 36W / 1200mm | 4057 LM | 4.0–6.0 m |
Industrial facilities, logistics loading zones | 50W / 1500mm | 5844 LM | 5.0–8.0 m |
Note: Mounting height recommendations are general guidelines for uniform illumination. Actual lux requirements should be calculated based on room dimensions, surface reflectance values, and local lighting standards for your project.
Stndard Product Size
Product Size(mm) | A | B | C | LF |
YX-LNF3-650 | 650 | 59 | 60 | 470 |
YX-LNF3-1200 | 1200 | 59 | 60 | 1020 |
YX-LNF3-1500 | 1500 | 59 | 60 | 1320 |
Optional Configuration
Optional Connector
Installation Method
Why Choose Enshine LED Tri-Proof Lights
Strict quality control during production
Stable LED driver performance
Long lifespan and low maintenance cost
Multiple product options for different markets
Professional OEM and ODM service
Manufacturer Backing: Enshine Lighting
This YX-LNF3 LED tri-proof light is manufactured by Enshine Lighting, a professional LED lighting manufacturer founded in 2006. With two manufacturing facilities in Fujian, China, Enshine operates an in-house SMT workshop and maintains a dedicated QC team of 20+ staff to support production consistency and quality control for global B2B orders.
Company-level quality certifications: Enshine Lighting's manufacturing facilities hold ISO 9001 (quality management) and ISO 14001 (environmental management) certifications. These company-level certifications apply to the factory's production and quality management processes. Product-specific certifications for this model are available upon request—please confirm requirements with our sales team before ordering.rdering.
OEM / ODM Service Capabilities
Custom wattage and CCT: While standard options cover 18W–50W and 2700K–6500K, Enshine's 30+ engineering team can support project-specific configurations. Custom requirements are available upon request.est.
Branding options: Enshine-branded packaging or custom OEM brand printing for distributor partners. Minimum order quantities and artwork specifications are available upon request.
Connector and accessory selection: Optional connectors and installation fittings shown above support various project layouts including straight, L-shaped, and cross continuous lighting runs.
Lead time and packaging: Production lead time and packaging specifications are confirmed per order based on quantity, destination, and customization scope. Contact our sales team for a project-specific quotation.
Application
The parking lot, corridor, warehouse
Basement and other indoor or outdoor scenarios that need waterproof and dust-proof lighting
Procurement FAQ
Q: Can this fixture be used outdoors in direct rain?
The IP65 rating means the fixture is protected against low-pressure water jets from any direction. It is suitable for covered outdoor areas, parking garages, and environments with humidity and water spray. For continuous direct rain exposure, verify additional installation protection with our engineering team.
Q: What is the difference between the two 18W models listed in the specifications?
The 18W wattage is available in both 650mm and 1200mm housing lengths (1850 LM each). The 650mm version is suited for compact spaces, while the 1200mm version provides wider light distribution over the same power draw. Select based on ceiling layout and fixture spacing requirements.
Q: Does this product come with a warranty?
Yes. A 3-year warranty is included as standard. Specific warranty terms and after-sales support procedures are available upon request.
Q: Is a 100–277V wide-voltage version available?
The standard model operates on AC 220-240V, 50/60 Hz. For markets requiring different voltage input, please contact our sales team to confirm availability and minimum order requirements.
Q: Can I request product-specific test reports or certifications before placing an order?
Yes. Product-specific test data and applicable certifications for this model can be provided during the inquiry stage. Please specify your target market certification requirements so we can confirm compliance before production.
