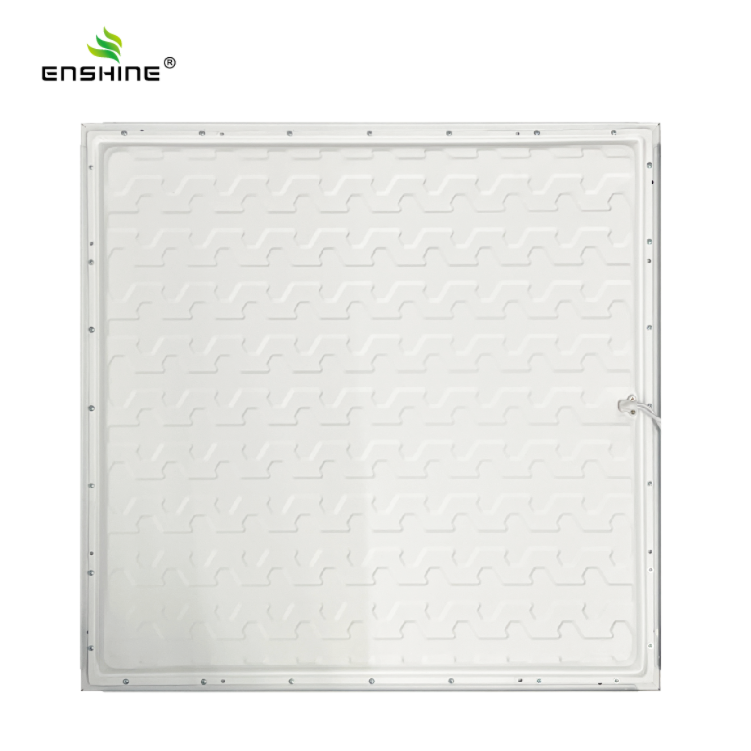

Ultra-slim LED panel light rear with zigzag backplate

Ultra-slim LED Panel Light

Ultra Slim LED Panel Light with a modern flat design, uniform light distribution and energy-efficient performance. Suitable for offices, shops, schools and residential interiors. Available in multiple sizes, CCT and private label options for lighting distributors and wholesale buyers.

Highlights

  • 3 types of power: 40W/48W/72W.
  • Customizable color temperature: 2700-7000K.
  • Easy installation.

Specifications

Wattage40W, 48W, 72W
VoltageAC 90-265V
CCT2700k-7000k
CRI>80
Efficacy90 lm/W
Warranty3 Years

Product Details

Ultra-Slim LED Panel Light 600×600

The Enshine Ultra-Slim LED Panel Light is a recessed ceiling panel built for offices, shops, schools and residential interiors that need clean, uniform light in a thin profile. The fixture is only 9 mm thick, which keeps it visually unobtrusive while still delivering even, low-glare illumination across the panel.

This model is a square 600×600 mm panel. It is available in three power levels — 40W, 48W and 72W — so distributors and project buyers can match output to room size without changing the fixture family or the ceiling cut-out.

Specifications

ModelWattageLuminous Flux (±10%)EfficacySize
YX-BPA40W3600 lm90 lm/W600×600 mm
YX-BPA48W4320 lm90 lm/W600×600 mm
YX-BPA72W6480 lm90 lm/W600×600 mm

All three versions share the same electrical and optical platform: AC 90–265V input, color temperature 2700K–7000K, CRI >80, die-cast aluminium and PC construction, and a 25,000-hour average life. The fixture carries a 3-year warranty.

Why the 600×600 Panel Works for Commercial Projects

For lighting distributors and contractors, a single 600×600 panel size that spans three power levels simplifies both specification and stock. One ceiling cut-out and one fixture family cover a range of room sizes, which reduces the number of SKUs you need to hold and makes it easier to match a project's required light level.

The 90 lm/W efficacy keeps energy use in line with the light output, which matters for offices and schools where panels run for many hours a day. The high-transmittance diffuser spreads light evenly and reduces glare, supporting comfortable working conditions.

Choosing Between 40W, 48W and 72W

The three power levels differ mainly in light output rather than in physical size or appearance. The 40W version produces 3600 lm, the 48W version 4320 lm and the 72W version 6480 lm, all at the same 90 lm/W efficacy. Because the panel footprint stays at 600×600 mm across the range, a project can specify a higher output for a larger or brighter space without changing the ceiling layout or the mounting detail.

For a distributor, this means one panel family can serve several lighting levels in a catalogue. For a contractor, it means the same cut-out and the same installation method apply whether the room calls for the lower or the higher output version.

Light Quality for Indoor Work Spaces

The panel uses a high-transmittance diffuser that spreads light across the whole surface rather than concentrating it in the centre. Combined with a CRI above 80, this supports accurate colour appearance for everyday indoor tasks. The wide 2700K–7000K colour temperature range lets a project choose a warmer or cooler tone to suit the space, and the colour temperature can be specified within that range as part of the order.

Construction and Durability

The housing combines die-cast aluminium with PC components. The aluminium body supports heat dissipation during long operating hours, while the PC diffuser keeps the light output even and stable. The rated average life is 25,000 hours, and the fixture is covered by a 3-year warranty.

Installation

The panel is designed for recessed installation into a standard suspended ceiling. Confirm the ceiling cut-out and mounting method for your specific ceiling type before ordering, and verify that the fixture's 600×600 mm footprint fits your grid. Because the panel is thin and lightweight, handling and positioning are straightforward for a qualified installer.

Before placing an order, it is worth confirming three things with our team: the ceiling grid type you are installing into, the light level the space requires, and whether you need a specific colour temperature. These three inputs let us confirm the right wattage and configuration for your project.

Applications

The Ultra-Slim LED Panel Light is suited to indoor environments where a clean ceiling appearance and even light are priorities, including:

  • Offices and commercial interiors

  • Retail shops and showrooms

  • Schools and educational buildings

  • Residential interiors and apartments

  • Corridors and common areas

Customization and Supply

Enshine supports OEM and ODM customization for this panel, including color temperature selection within the 2700K–7000K range and other configuration details. For a quotation, send us your required wattage, quantity, target market and any customization needs so we can confirm specifications, minimum order quantity and lead time for your project.

FAQ

What wattages are available?

The panel is available in 40W, 48W and 72W, all in a 600×600 mm square format.

What is the luminous efficacy?

All three power levels deliver 90 lm/W, giving 3600 lm, 4320 lm and 6480 lm respectively.

What color temperatures are supported?

The panel supports 2700K to 7000K, with CRI >80.

What is the warranty?

The fixture carries a 3-year warranty. Please confirm the warranty scope and claim process with our team for your order.

Can the panel be customized?

Yes. Enshine provides OEM and ODM customization, including color temperature and other configuration options. Contact us with your requirements.

Request Product Details

To help us prepare an accurate quotation and selection recommendation, please share your required wattage, quantity, target market and ceiling type.

Request product details
