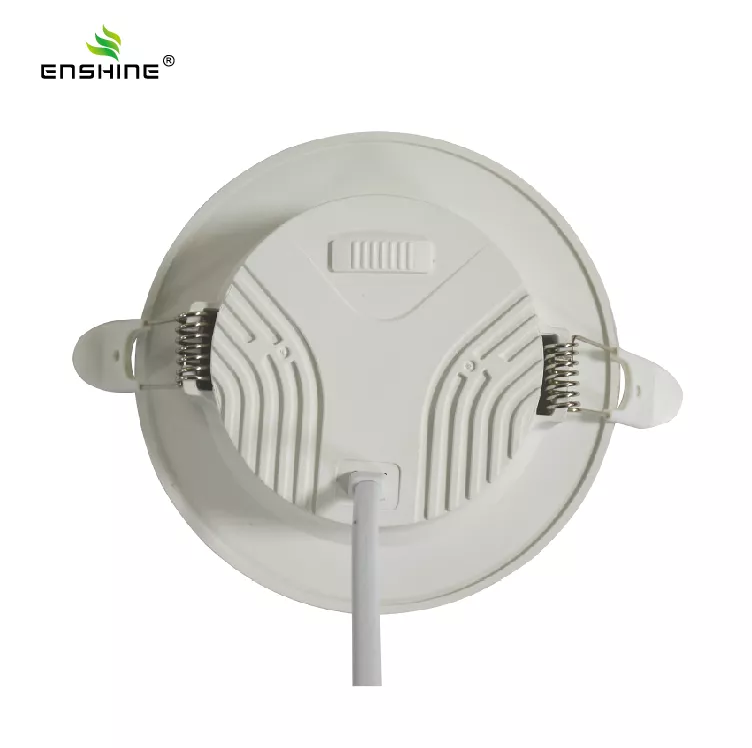

3CCT DIP DOB Downlight LED
OEM 3CCT DOB LED downlight manufacturer in China. Energy-saving recessed LED downlights with selectable color temperature for residential and commercial lighting projects.
Highlights
- Residential homes
- Offices
- Retail stores
- Hotels
- Commercial buildings
- Corridors and public areas
Specifications
| Wattage | 8W, 10W |
|---|---|
| Voltage | AC 90-265V |
| CCT | 2700k-7000k |
| CRI | >80 |
| Beam angle | 180° |
| Power factor | PF > 0.5 |
| Warranty | 2 Years |
Product Details
Description
Our 3CCT DOB Plastic Downlight is designed to provide flexible lighting solutions for residential and commercial applications. With a built-in DOB (Driver on Board) solution and 3CCT color temperature selection, this downlight allows users to easily switch between different lighting environments while maintaining stable performance and high efficiency.
The lightweight plastic housing design ensures excellent heat dissipation while reducing overall product weight, making installation easier and more cost-effective for large-scale projects.
Key Features
3CCT Selectable Color Temperature
Users can easily switch between 3000K / 4000K / 6500K, allowing one product to meet multiple lighting needs in different environments.
DOB Driver Integrated Design
The Driver-On-Board technology integrates the driver directly on the PCB, reducing component complexity, improving reliability, and lowering production cost.
High Brightness & Energy Efficiency
Equipped with high-quality LED chips to deliver stable brightness with low power consumption, helping reduce electricity costs.
Lightweight Plastic Housing
Durable plastic body design provides good thermal performance while keeping the product lightweight and easy to install.
Easy Installation
Designed for quick ceiling installation, suitable for both new construction and renovation projects.
Wide Application
Ideal for a variety of indoor lighting scenarios including:
Residential homes
Offices
Retail stores
Hotels
Commercial buildings
Corridors and public areas
Specifications
Power: 6W / 9W / 12W / 18W (optional)
Color Temperature: 3000K / 4000K / 6500K (3CCT selectable)
Material: Plastic housing
Beam Angle: 120°
Input Voltage: AC165-265V
Installation: Recessed ceiling installation
Lifespan: Up to 25,000 hours
Why Choose Enshine Lighting
With years of experience in LED lighting manufacturing, Enshine Lighting provides reliable and cost-effective lighting solutions for global distributors, wholesalers, and project contractors. Our products are designed with a strong focus on performance, durability, and competitive pricing, helping our partners succeed in their local markets.
Specifications
Model Number | Rated Wattage | Input Voltage | Color Temp. | Luminous flux (±10%) | C.R.I. | Hole size | Lamp Size |
YX-DLA-E | 5W | AC 165-265V | 3CCT | 75lm/W | >80 | 75mm | D95×H27mm |
YX-DLA-E | 7W | AC 165-265V | 3CCT | 75lm/W | >80 | 75mm | D95×H27mm |
YX-DLA-E | 9W | AC 165-265V | 3CCT | 85lm/W | >80 | 90mm | D115×H27mm |
YX-DLA-E | 12W | AC 165-265V | 3CCT | 90lm/W | >80 | 110mm | D140×H29mm |
YX-DLA-E | 15W | AC 165-265V | 3CCT | 90lm/W | >80 | 110mm | D140×H29mm |
YX-DLA-E | 18W | AC 165-265V | 3CCT | 90lm/W | >80 | 155mm | D190×H29mm |
YX-DLA-E | 24W | AC 165-265V | 3CCT | 90lm/W | >80 | 190mm | D230×H29mm |
YX-DLA-E | 28W | AC 165-265V | 3CCT | 90lm/W | >80 | 190mm | D230×H29mm |
