3CCT DIP DOB LED Downlight 5W-12W
3CCT DIP DOB LED downlight in 5W, 9W and 12W with Φ70mm/Φ90mm cut-outs, plastic housing and a competitive price point for volume orders.
Highlights
- DOB driver design: no separate external driver unit to stock or install
- 3CCT DIP switch for selectable color temperature within 2700K–7000K
- 5W, 9W and 12W options for different room sizes and brightness needs
- Plastic housing supports a competitive price for volume purchasing
- 70mm and 90mm cut-outs match the most popular recessed openings in many markets
- AC 90–265V wide input with C.R.I. >80 and 90lm/W efficacy
Specifications
| Model Number | YX-DLA-F |
|---|---|
| Rated Wattage | 5W / 9W / 12W |
| Input Voltage | AC 90-265V |
| Color Temp. | 2700K-7000K |
| Luminous Flux | 90lm/W |
| C.R.I. | >80 |
| columns | 5W||9W||12W |
| Hole Size | Φ70mm-Φ90mm |
| Lamp Size | Φ90mm-Φ110mm |
Product Details
3CCT DIP DOB LED Downlight in 5W, 9W and 12W

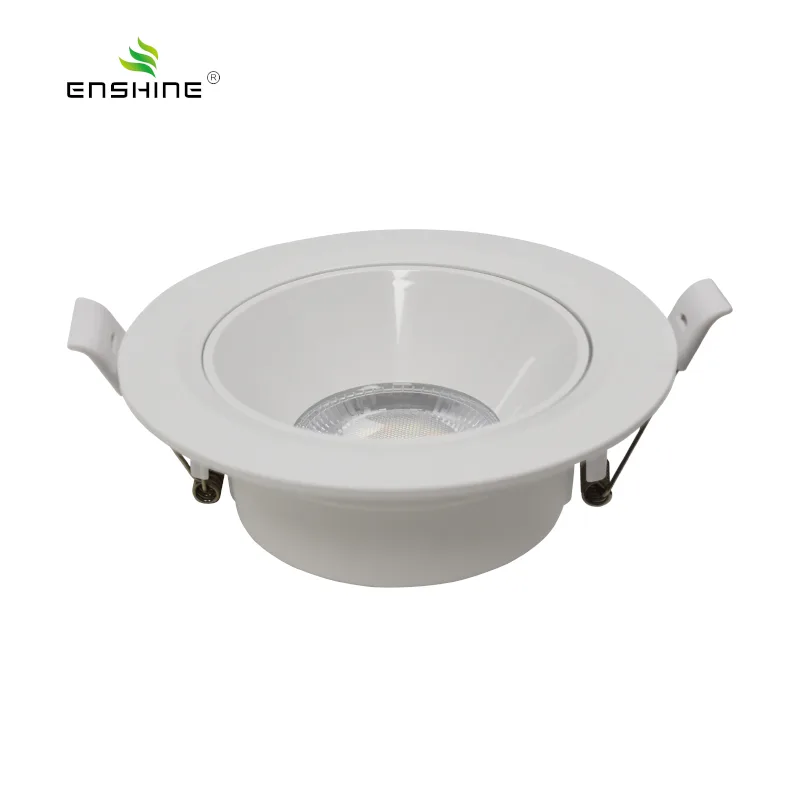

The YX-DLA-F series is a recessed LED downlight built around a driver-on-board (DOB) design: the driver circuit is integrated on the LED board, so the fixture works without a separate external driver unit. A DIP switch on the product selects between three color-temperature presets, and the plastic housing keeps the unit cost down for volume purchasing.
The series comes in 5W, 9W and 12W, with cut-out sizes of 70mm and 90mm — the two hole sizes that match the most common recessed openings in many markets. If you are comparing 3CCT downlight options in depth, our guide 3CCT and COB LED Downlights: Choosing the Right Recessed Fixture covers how the two constructions differ; the full downlight range is on the LED downlight category page.
Match Wattage to Cut-Out Size
Each wattage pairs with its own cut-out and fixture diameter, so you can plan the ceiling openings before ordering:
Model | Rated Wattage | Cut-Out (Hole Size) | Fixture Diameter |
|---|---|---|---|
YX-DLA-F | 5W | Φ70mm | Φ90mm |
YX-DLA-F | 9W | Φ90mm | Φ110mm |
YX-DLA-F | 12W | Φ90mm | Φ110mm |
The 5W version fits a 70mm cut-out; the 9W and 12W versions share a 90mm cut-out, so one ceiling opening standard covers both higher-output options.
What the 3CCT DIP and DOB Design Mean for Stocking

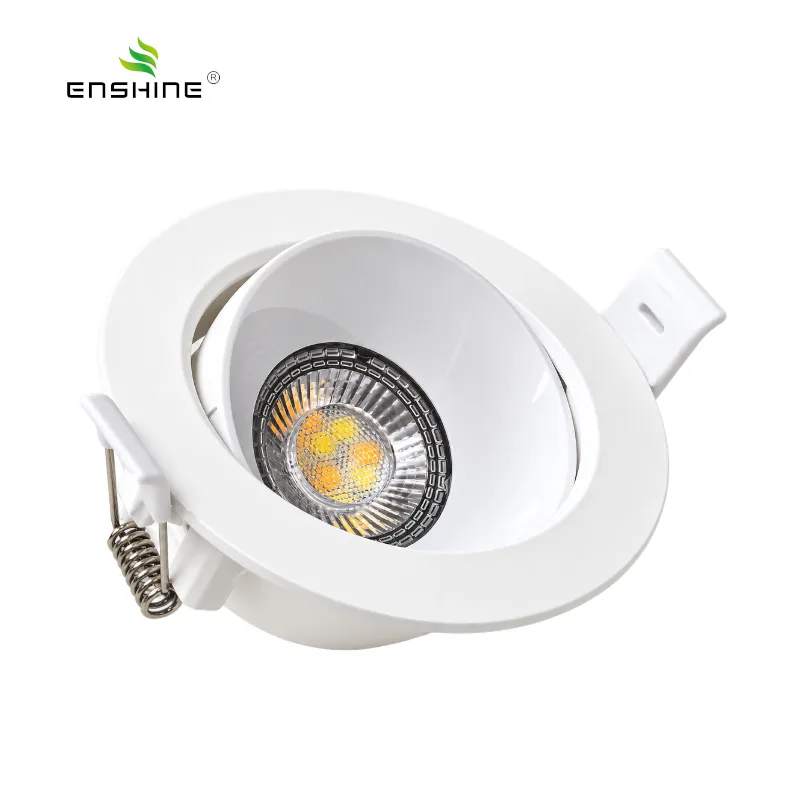

3CCT DIP selection: a DIP switch on the fixture selects between three color-temperature presets, so one SKU can serve buyers who ask for different white tones within the 2700K–7000K specification range.

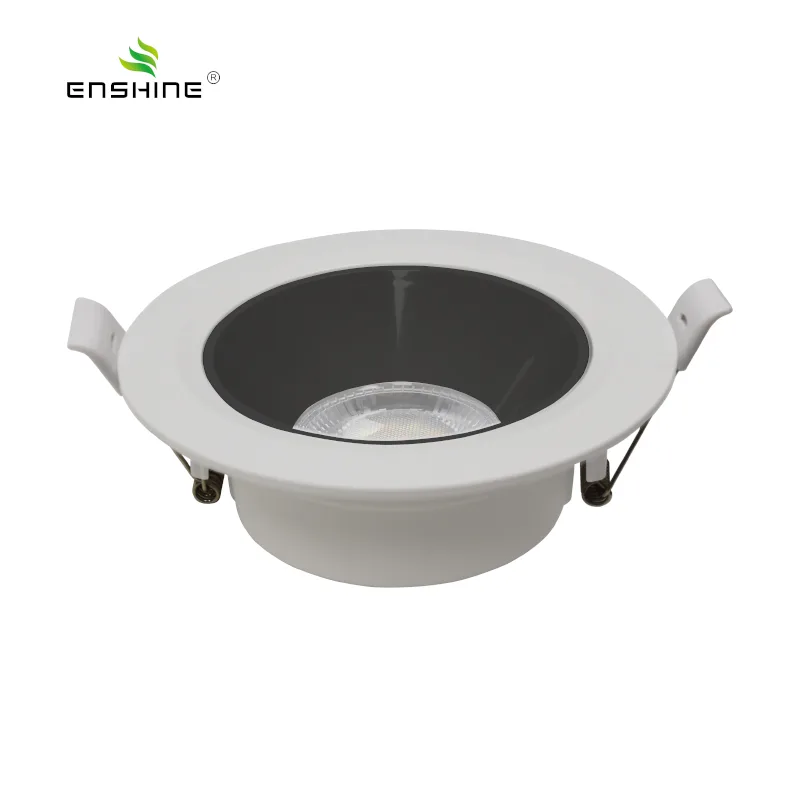

DOB driver: with the driver integrated on the board, there is no separate driver component to stock, install or replace — a simpler bill of materials for assembly and after-sales handling.

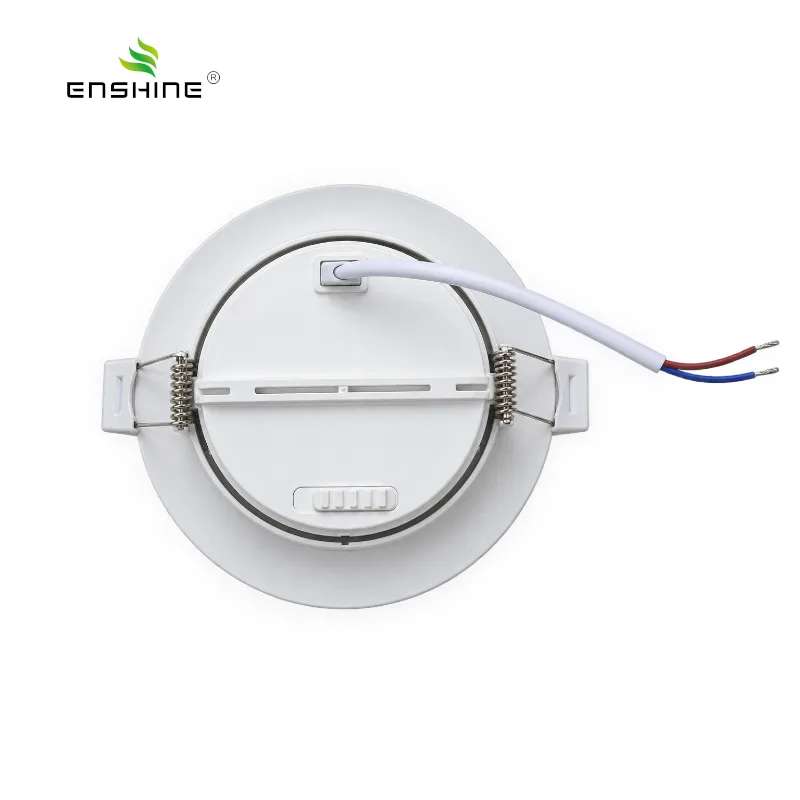

Plastic housing: the specified housing material for this series, which supports a more competitive price point than aluminum-body downlights.
Electrical and Light Specifications
Input voltage AC 90–265V: a wide input range that covers 110V, 220V and 230V mains systems without separate voltage versions.
Luminous efficacy 90lm/W: the specified efficacy for this series.
C.R.I. >80: color rendering above 80 across the range.
Color temperature 2700K–7000K: the specification range for this series; the DIP switch selects among the three presets.
Frequently Asked Questions
How do I choose between 5W, 9W and 12W?
Start from the cut-out size and the brightness the room needs. The 5W version fits a 70mm opening; the 9W and 12W versions fit a 90mm opening, with 12W giving the highest output. Confirm the arrangement for your project with our sales team.
How is the color temperature changed?
By the DIP switch on the fixture, which selects between three presets within the 2700K–7000K specification range. Ask our team for the datasheet showing the exact preset values.
Which certifications does the product hold?
Certification requirements differ by market. Send your target market with the inquiry and our team will confirm the certificates currently available for this series.
What are the MOQ, sample and lead-time terms?
Terms depend on the wattage mix and quantity. Include your target wattages, cut-out sizes and estimated volumes in the inquiry, and we will confirm the applicable terms.
Request Pricing and Selection Support
Tell us the wattages, cut-out sizes and target market you need — these details help our team review your requirement and prepare a quotation and selection response.
