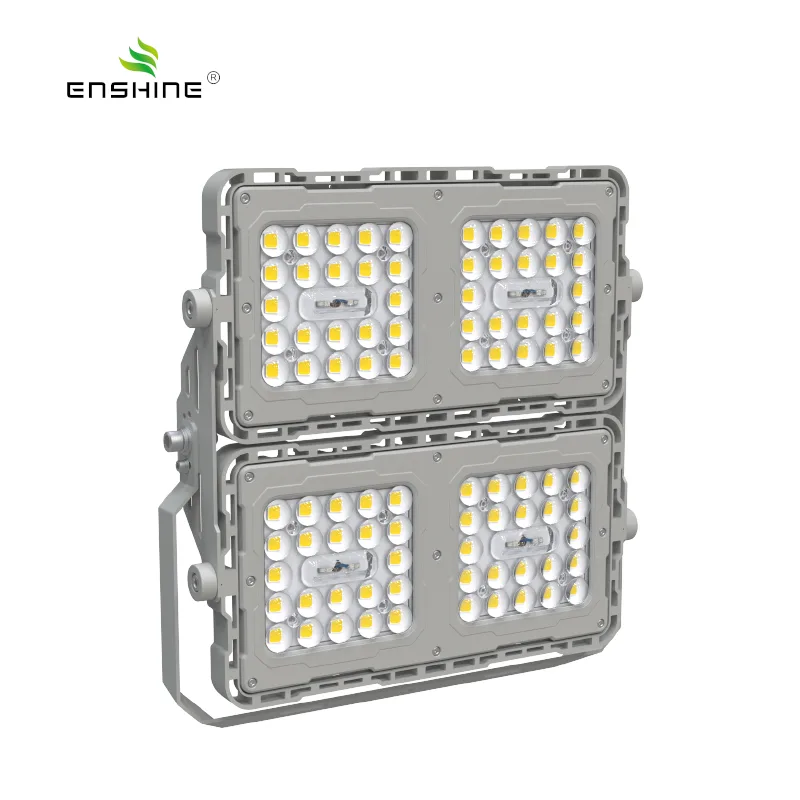

High quality IP66 floodlight
This floodlight series is available in 300W, 320W, 360W and 400W versions. With a luminous efficacy of 160–180 lm/W, the range delivers 48,000–72,000 lm, giving buyers a single-fixture option for outdoor flood lighting installations such as building facades, storage yards and parking areas
Highlights
- 300W–400W power range with 48,000–72,000 lm luminous flux
- 160–180 lm/W luminous efficacy with 88 PCS SMD 7070 LEDs
- IP66 ingress protection and IK08 impact rating
- ADC die-casting aluminum housing rated for −40℃ to 50℃ operation
- AC100–277V wide voltage input with power factor ≥0.95
- 2700K–5000K color temperature options, CRI≥70
Specifications
| Power | 300W / 320W / 360W / 400W |
|---|---|
| Light Source | SMD 7070, 88 PCS |
| Color Temperature | 2700K-5000K |
| Color Rendering Index | CRI≥70 |
| Working Voltage | AC100~277V |
| Frequency | 50~60Hz |
| Body Material | ADC Die-casting Aluminum |
| Power Factor | ≥0.95 |
| Working Temperature | -40℃~50℃ |
| Ingress Protection | IP66 |
| IK Rating | IK08 |
| Luminous Efficacy | 160-180lm/W |
| columns | 300W||320W||360W||400W |
| Luminous Flux | 48000-54000lm||51200-57600lm||57600-64800lm||64000-72000lm |
Product Details
300W–400W High Power Floodlight for Large Outdoor Areas
This floodlight series is available in 300W, 320W, 360W and 400W versions. With a luminous efficacy of 160–180 lm/W, the range delivers 48,000–72,000 lm, giving buyers a single-fixture option for outdoor flood lighting installations such as building facades, storage yards and parking areas.
For a fuller walkthrough of how IP rating, wattage and lumens work together in outdoor flood lighting, see our guide: Outdoor LED Flood Lights: Matching IP Rating, Wattage and Lumens to Your Project.
Product Details
 |  |
Choosing Between the Four Wattage Options

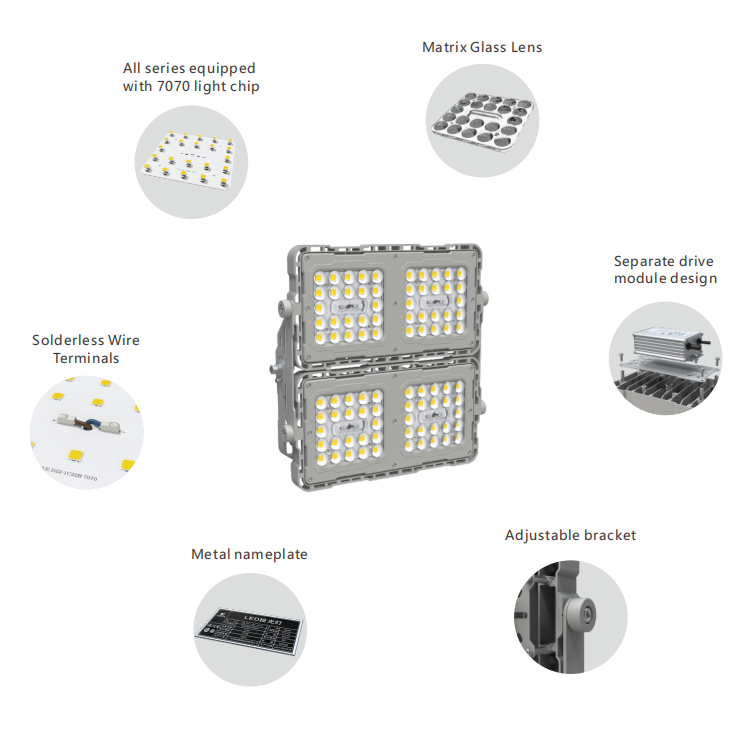

All four versions share the same light source configuration of 88 PCS SMD 7070 LEDs. The table below lists the luminous flux for each wattage so you can match output to the area, mounting height and target illuminance of your project before requesting a quotation.
Power | Luminous Flux |
|---|---|
300W | 48,000–54,000 lm |
320W | 51,200–57,600 lm |
360W | 57,600–64,800 lm |
400W | 64,000–72,000 lm |
Flux figures follow this series' specification. Confirm the required illuminance level and mounting arrangement when comparing quotations, because output per fixture varies across the range.

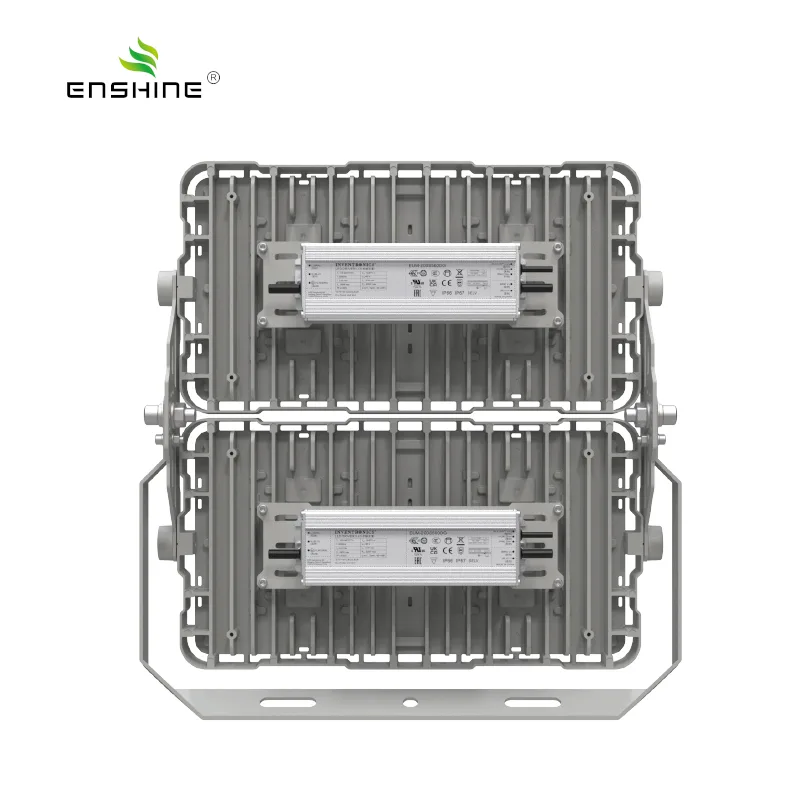

Sealed ADC Aluminum Housing Built for Outdoor Conditions
IP66 ingress protection: the housing is dust-tight and protected against powerful water jets — the rating to check first in a waterproof outdoor LED flood light exposed to rain and regular washing.
IK08 impact resistance: the fixture is rated IK08 for resistance to external mechanical impact.
ADC die-casting aluminum body: the specified housing material for this series.
Wide operating temperature: rated for −40℃ to 50℃ working temperatures, covering cold-winter and hot-climate installations.
Electrical Input and Light Quality
AC100–277V, 50/60Hz: a wide voltage input covering 100–120V, 220–240V and 277V single-phase circuits.
Power factor ≥0.95: keeps the fixture's current draw closely in phase with the supply voltage.
2700K–5000K color temperature, CRI≥70: warm to neutral-white output options within the series.
Frequently Asked Questions
How do I choose between 300W, 320W, 360W and 400W?
Start from the illuminance your task requires, the area to cover and the mounting height. Compare the luminous flux figures above against that target, then confirm the arrangement with our sales team along with your project details.
Does this floodlight work on a 277V supply?
Yes. The working voltage is AC100–277V at 50–60Hz, which covers 100–120V, 220–240V and 277V single-phase circuits.
Which certifications does the product hold?
Certification requirements differ by market. Contact our sales team with your target market to confirm the current certificates available for this series.
What are the MOQ, sample and lead time terms?
Order terms depend on the model and quantity. Send your target wattage and estimated annual volume through the inquiry form, and our team will confirm the applicable terms.
Request Pricing and Project Support
Tell us the wattage you need, the mounting height and the target market — these details help our team review your requirement and prepare a quotation and selection response.
