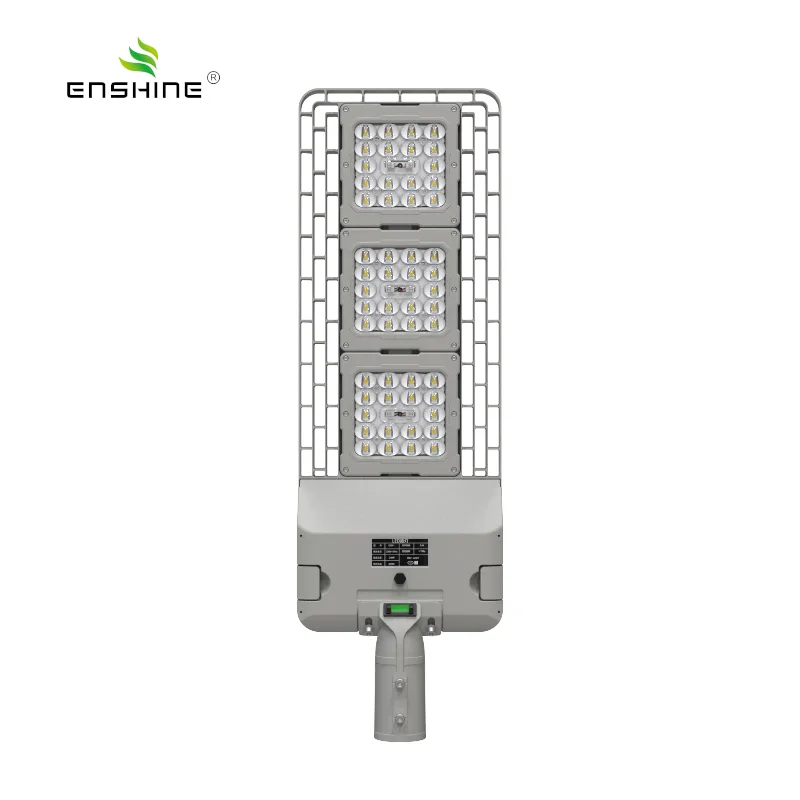

Matrix Glass Lens LED Street Light
High-efficiency LED Street Light with matrix glass lens, up to 170 lm/W, IP66, IK10, T2/T3/T4 optics, smart control and 5-year warranty. OEM/ODM available.
Highlights
- 155-175 lm/W high luminous efficacy for significant energy savings
- Matrix glass lens with up to 95% light transmittance, resistant to yellowing, scratches, salt and alkali
- IP66 waterproof and dustproof with IK08 impact resistance for harsh outdoor environments
- Wide voltage AC100~277V for global compatibility
- ADC die-casting aluminum body for excellent heat dissipation and durability

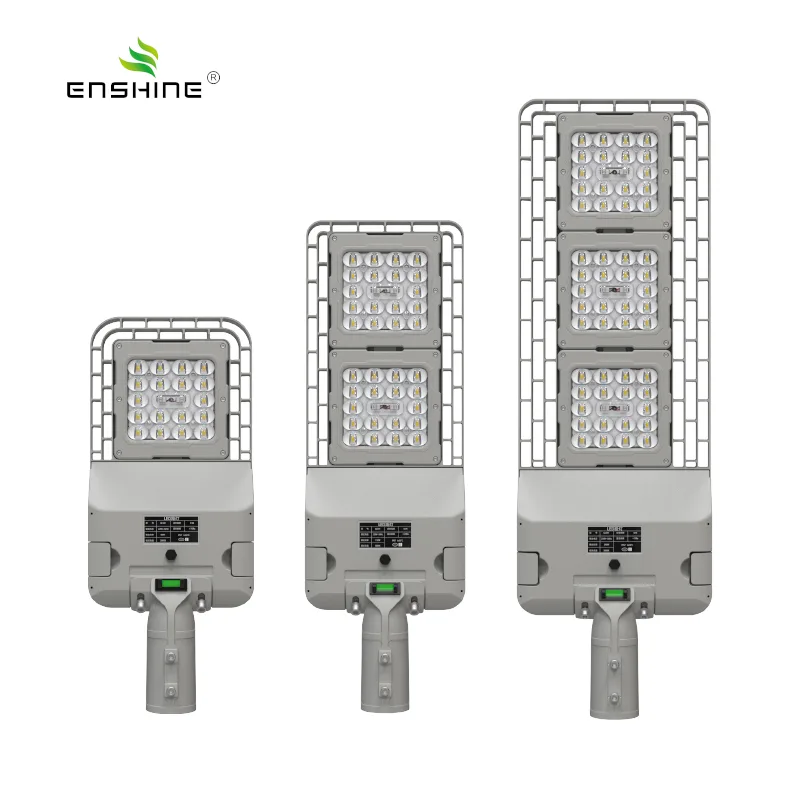

- Available in 100 -300W with luminous flux up to 52500lm
- 2700K-5000K color temperature options for flexible lighting design
Specifications
| Watt | 100W-200W-300W |
|---|---|
| Light source | SMD 7070-54PCS |
| Color Rendering Index | CRI≥70 |
| Working Voltage | AC100~277V |
| Frequency | 50~60Hz |
| Body Material | ADC Die-casting Aluminum |
| Power Factor | ≥0.95 |
| Working Temperature | -40℃~50℃ |
| Ingress Protection | IP66 |
| IK Rating | IK08 |
| Luminous Efficacy | 155lm-175lm/W |
Product Details
Matrix Glass Lens LED Street Light is designed for urban roads, highways, parking lots, gardens, schools, hospitals and other outdoor lighting applications. Available from 100W to 300W, it delivers up to 170 lm/W efficiency with multiple light distribution options including T2, T3 and T4.
The integrated matrix glass lens provides up to 95% light transmittance and excellent resistance to heat, corrosion, scratches, salt and alkali. Combined with an IP66 and IK10 rated housing, the street light is designed for reliable long-term outdoor use.
The lamp supports 1-10V and DALI dimming, optional photocell and Zigbee control, as well as 10kV/20kV surge protection. The adjustable mounting arm supports ±15° angle adjustment, providing greater flexibility during installation.
Key Features
High-Efficiency LED Street Light
With LED efficiency of up to 170 lm/W, this street light provides high luminous output while helping reduce energy consumption in outdoor lighting applications.
Available power options from 100W to 300W make it suitable for different road widths, mounting heights and lighting requirements.
Matrix Glass Lens with 95% Light Transmittance
The integrated matrix glass lens provides up to 95% light transmittance for efficient light output.
Compared with conventional plastic lenses, the glass lens offers excellent resistance to yellowing, aging, scratches, corrosion, salt and alkali. It also provides high temperature resistance from -50°C to +550°C.
IP66 & IK10 Protection
The aluminum lamp body is designed for demanding outdoor environments.
IP66 protection against dust and water
IK10 mechanical impact resistance
Corrosion-resistant construction
Scratch-resistant glass lens
Suitable for long-term outdoor applications
Multiple Light Distribution Options
The street light is available with T2, T3 and T4 light distributions to meet different road lighting requirements.
Different optical configurations can be selected according to road width, pole spacing, mounting height and project requirements.
Smart Lighting Control
The street light supports multiple control options for energy-efficient lighting management.
1-10V dimming
DALI dimming
Photocell sensor
Zigbee control
Single-light controller
PLC
CAT.1
This makes the product suitable for both conventional street lighting and smart city lighting projects.
10kV / 20kV Surge Protection
Optional 10kV and 20kV surge protection helps protect the LED driver and lighting system against electrical surges in outdoor environments.
±15° Adjustable Mounting Arm
The mounting arm supports ±15° angle adjustment, allowing installers to optimize the light direction according to different road layouts and installation conditions.
Reliable LED & Driver Components
The street light uses CREE SMD3030 LED chips and can be configured with Mean Well or Inventronics drivers, depending on project requirements.
