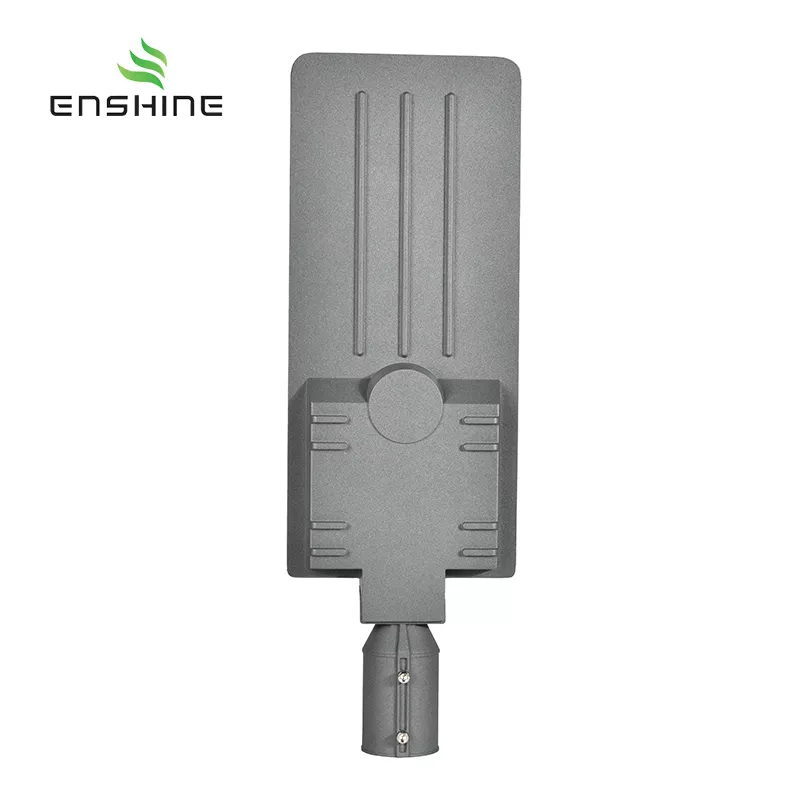

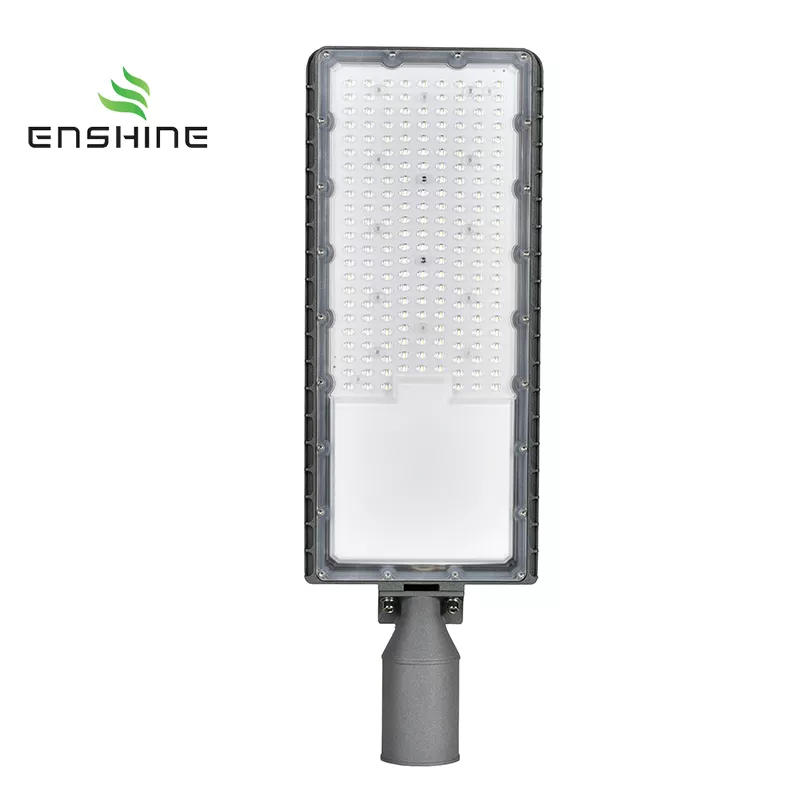

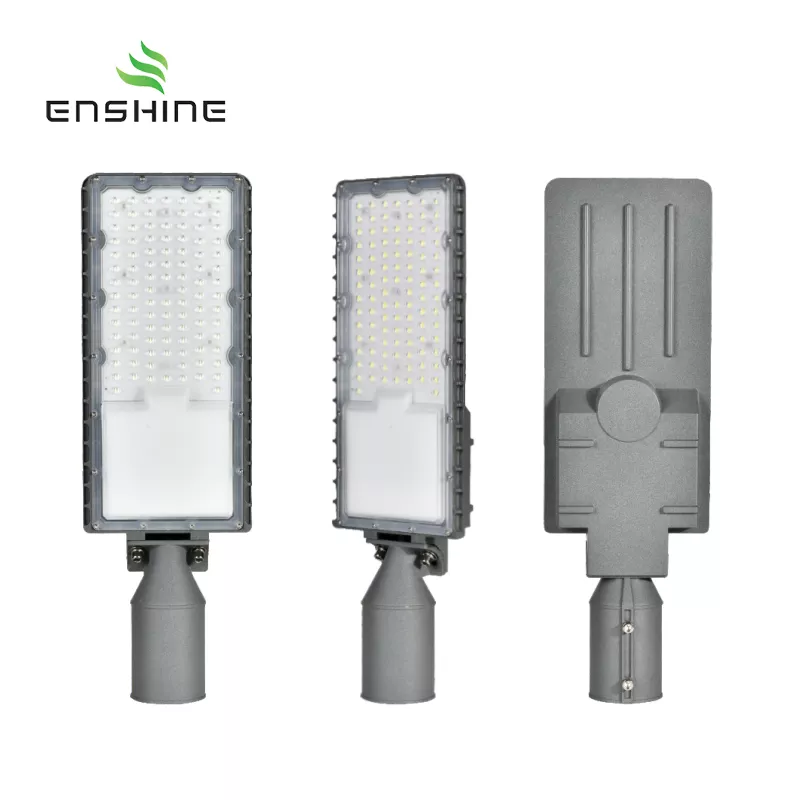

Outdoor LED Street Light high power IP65

ENSHINE YX-SL-01 series LED street light adopts SMD2835 or SMD3030 SMD light source with high luminous efficiency and good dispersion. Adopt the high-stability isolated constant current power supply scheme, it has the characteristics of over-temperature protection, wide voltage range, high power factor, high efficiency, and good heat dissipation effect. Adopt high-purity aluminum radiators with high thermal conductivity to maintain a reasonable temperature. With a mounting height of 8-10m, an adjustable angle between 5-15°, and IP65/IK08 level waterproofing, our outdoor LED street lights are the best choice for roads, stadiums, sports grounds, workshops, warehouses, and more.

Model	YX-SL-01
Version	Standard		Light-induced
Voltage	AC 100-305V 50/60Hz
Wattage	50W	100W	150W	200W	250W
Light Effect	100-140 lm/W
Color Temperature	3000K-6000K
Color Rendering Index	Ra＞70
Power Factor	PF ≥ 0.9
IK/IP	IK08/IP65
THD	≤ 15%
Insulation Grade	Class I
Surge Protection	4 KV
Product Size (mm)	500*160*83	500*160*83	637*211*83	676*255*83	783*260*83
Average Life	30000 Hrs
Brand Name	Enshine
Warranty	3 Years

Key Features

---

• High-stability isolated constant current power supply scheme

• SMD2835/3030 patch light source

• High-purity aluminum radiator

• Light sensor (Light-induced version)

• Long lifespan

Application Areas

---

• Road

• Stadium

• Sports Ground

• Workshop

• Warehouse

Product Size

---

Installation Instruction

---
